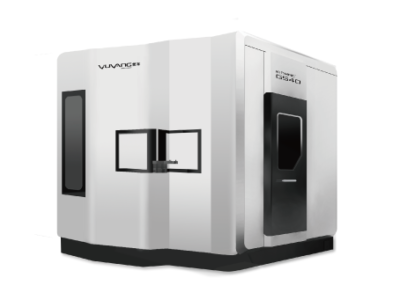

CNC machine tools designed for automatic grinding with high rigidity and flexibility, best choice for the processing of castings where a high removal rate is required, or for automatic cutting of gating and risers, with the possibility of carrying out also some mechanical pre-machining.
Part quick loading
The castings loading and unloading is performed by means of a two-position pallet, with outside manual loading area controlled by safety barriers that stop the pallet changer rotation if interrupted accidentally by the worker. The pallet changer system automatically loads the raw part and download the ground part in just few seconds.

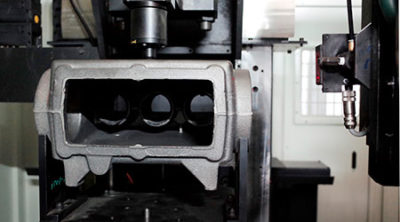

When the part is inside the machine a pneumatic tailstock clamps it on the fixture assuring stable grinding operation.
Laser measuring device
After been loaded inside the working area the part is automatically checked by the laser measurement system to verify its real location on the jig and its dimensional deviations compared to the masterpiece. The grinding program is then automatically adjusted according to the laser readings granting a consistent finishing quality for all the pieces produced.
5 axis grinding
After the part is checked by the laser the grinding cycle starts. The electro spindle carrying the grinding tools is mounted on a CNC controlled rotary axis for optimal positioning of the tool in the space. The standard electro spindle carries two tools (one large wheel and a small cutter). Totally the machine has 5 CNC controlled axes granting maximum flexibility and best automatic finishing of the grinding process.

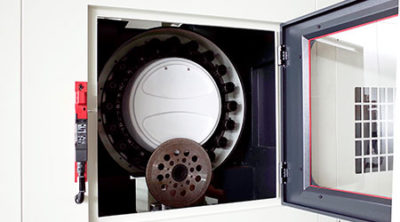

Optionally the machine can be equipped with automatic tool changer and a tool magazine. In this way, for each part to be ground, dedicated tools can be used in order to maximize the automatic finishing level, with tool change done automatically in just few seconds.
With this unique option the machine grants also best performances in terms of OEE thanks to the worn-out tool replacement in very short time.
|Model||GS 40||GS 70||GS 80||GS 120||GS 160||GS 200|
|Working area (*)||550 x 300 mm||750 x 400 mm||1000 x 550 mm||1300 x 750 mm||1600 x 900 mm||2000 x 1000 mm|
|Dia. x H.||22″ x 12″||29.5″ x 15.7″||40″ x 22″||51″ x 29″||63″ x 35″||78″ x 39″|
|Max payload (*)||50 Kg||100 Kg||250 Kg||400 Kg||1000 Kg||1500 Kg|
|110 lbs||220 lbs||550 lbs||880 lbs||2200 lbs||3300 lbs|
